ACTIVATED CARBON FILTERS
ACTIVATED CARBON FILTERS

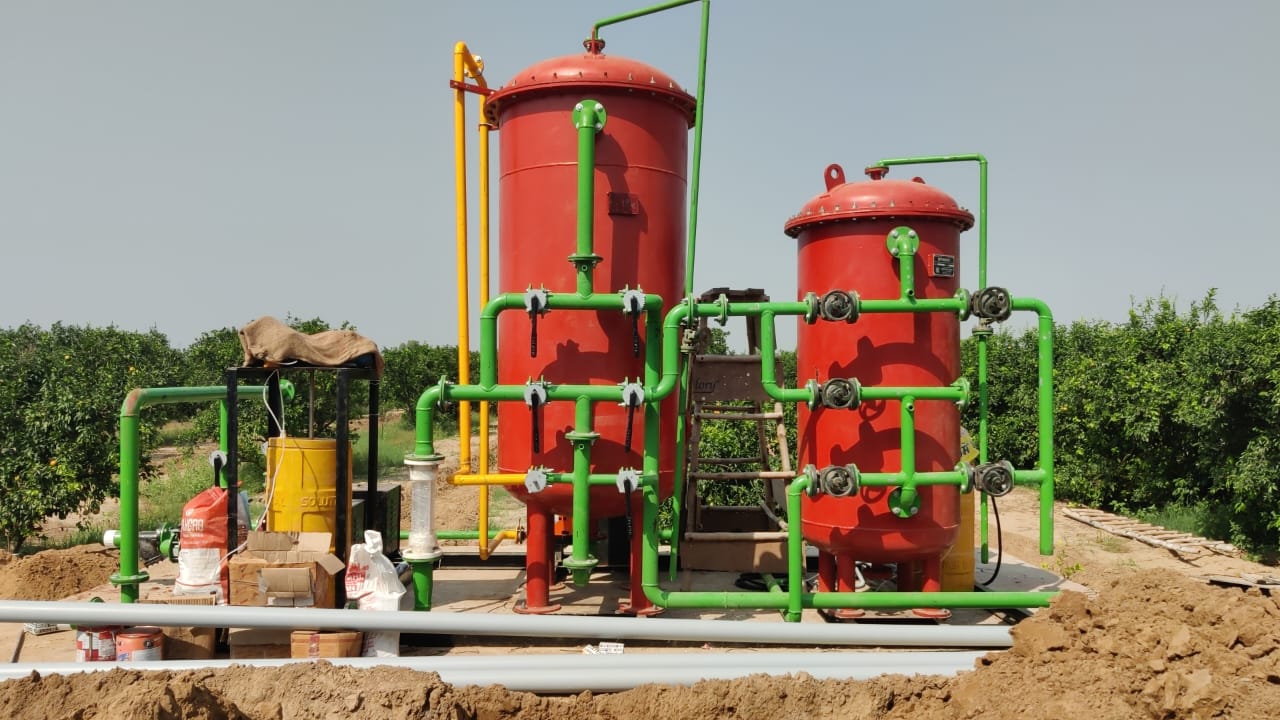

After installation of carbon filter Water Softener, DM Water Plants OR Reverse Osmosis Plants become more effective. The Activated Carbon Filters are more commonly used by the Food Processing & Beverages Industries where water play a essential role in making quality products like mineral water, soft drinks or juices using very high quality coconut shell based granular activated carbon media having lodized value not less than 1100mg. The other usage for activated carbon filters are in waste water treatment where organies removed because essential before disposal. Are activated carbon filters are designed at filtration rate vary from 9-15 m3/hr/m2 and capable to treat sewage or efficient water after biological treatment.
UNDER DRAIN SYSTEM
Each filter will be provided with an efficient under drain system comprising of collecting pipes, polyproplene nozzle’s as per design & engineering. The entire under drain system will be supported on M.S. Bed Plate or cement concrete supports based on filter vessel diameter. In some cases, header pipes with laterals covered with big size pebbles, to prevent loss of activated carbon are provided.
FRONTAL PIPE WORK & VALVES
All filters are provided with interconnecting face piping in M.S. comprising of inlet, outlet and back wash lines complete with valves for individual operations. The waste effluents are directed to a drain sump for which a pipe to drain should be connected.
FILTER MEDIA
The under bed material for the filter consists of two layer of gravels, one layer of coarse, one layer of granular activated carbon media. In bigger size filters where pipe header with laterals are provided extra big size pebbles are also filled to cover header pipe of collecting system.
ACCESSORIES
- Air release valve with connecting piping.
- 100 mm dia Dial Bourden type gun metal pressure gauges with gun metal isolation, cock and connecting piping on inlet and outlet, causing shall be with cast aluminium stored enamel black finish cases.
- Sampling cocks on water inlet and filtered water outlet.
Available in different sizes and capacity ranges from 5 cum. to 160 cum. per hour rate of flow. For best designing of suitable filter, kindly provide complete detail as per below on our E-Mail : ionswater@gmail.com / vkenvirotech@gmail.com
- Flow rate through filter
- Feed water quality ( Turbidity & Suspended solids )
- Application of treated water
TECHNICAL DATA OF ACTIVATED CARBON FILTERS | ||||||||||
Sr. Nos. | Model | Diameter (mm) | H.O.S. (mm) | Thickness(mm) | Frontal Piping (mm) | Max. Flow Rate m3/hr.* | Carbon Depth in (mm) | Carbon Qty. ( Kg.) | Remarks | |
Shell | Dish End | |||||||||
1. | ENVIROX – 600 ACF | 600 | 2000 | 5 | 6 | 40 | 5.6 | 900 | 140 | MSEP |
2. | ENVIROX – 800 ACF | 800 | 2000 | 5 | 6 | 40 | 10.0 | 900 | 250 | MSEP |
3. | ENVIROX – 1000 ACF | 1000 | 2000 | 5 | 6 | 50 | 15.0 | 900 | 385 | MSEP |
4. | ENVIROX – 1200 ACF | 1200 | 2000 | 5 | 6 | 80 | 23.0 | 900 | 550 | MSEP |
5. | ENVIROX – 1400 ACF | 1400 | 2000 | 5 | 6 | 80 | 30.0 | 900 | 750 | MSEP |
6. | ENVIROX – 1600 ACF | 1600 | 2000 | 6 | 8 | 80 | 40.0 | 900 | 975 | MSEP |
7. | ENVIROX – 1800 ACF | 1800 | 2000 | 6 | 8 | 80 | 50.0 | 900 | 1250 | MSEP |
8. | ENVIROX – 2000 ACF | 2000 | 2000 | 6 | 8 | 100 | 63.0 | 900 | 1525 | MSEP |
9. | ENVIROX – 2200 ACF | 2200 | 2000 | 8 | 10 | 100 | 75.0 | 900 | 1850 | MSEP |
10. | ENVIROX – 2400 ACF | 2400 | 2000 | 8 | 10 | 100 | 90.0 | 900 | 2200 | MSEP |
11. | ENVIROX – 2600 ACF | 2600 | 2000 | 10 | 12 | 150 | 110.0 | 900 | 2600 | MSEP |
12. | ENVIROX – 2800 ACF | 2800 | 2000 | 10 | 12 | 150 | 125.0 | 900 | 3000 | MSEP |
13. | ENVIROX – 3000 ACF | 3000 | 2000 | 10 | 12 | 150 | 140.0 | 900 | 3500 | MSEP |
14. | ENVIROX – 3200 ACF | 3200 | 2000 | 10 | 12 | 200 | 160.0 | 900 | 4000 | MSEP |
- Subject to feed water quality
