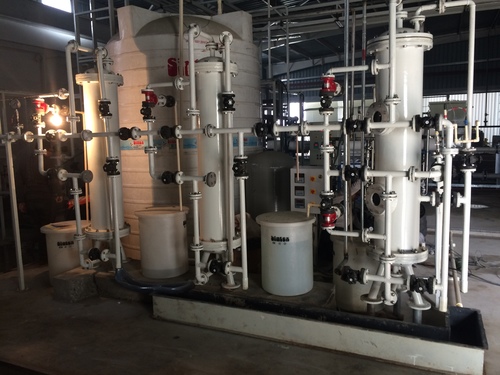

DM Water Treatment Plant

DM Water Treatment Plant
DM Water Treatment Plant
Product Code : EU-DMWTP
Product Description

We are amongst the reputed organizations, engaged in manufacturing, exporting and supplying DM Water Plant. The plants are precisely fabricated by our expert professionals using premium grade components and materials. These plants remove harmful materials and soluble minerals like calcium, magnesium and sodium to ensure safe drinking water. The DM Water Plant are tested and examined by our team of quality controllers in order to deliver flawless products to the customers.

Features:

  • High performance
  • Low maintenance
  • Corrosion resistant
  • Easy to operate

Other details:

For removal of raw water dissolved salts, to make water free from soluble salts of Calcium, Magnesium & Sodium, water demineralisation plants are advisable. Raw water which contains chlorides, sulphates & carbonates of Calcium, Magnesium & Sodium make water unfit for use in the pharmaceutical, chemical & battery manufacturer industries and for high pressure boilers. The units can be different types depending on feed water quality and required treated water quality. The process of demineralization defined as under

  • SAC - SBA
  • SAC - SBA - MB
  • SAC - DG - SBA
  • SAC - DG - SBA - MB
  • SAC - DG - WBA - SBA
  • SAC - DG - WBA - SBA - MB

CATION EXCHANGE
In demineralising, the cation exchange resin is used in the hydrogen form (RH). The ions in the water re actually freely moving but for the purposes of simplicity then may be identified as definite pairs.

INLET WATER QUALITY
Because an ion exchange resin must be kept clean to function efficiently, the inlet water or raw water must be cold, clean and colourless.

The water should be free of suspended matters, organic matter, oil, algae, slime and heavy metals such as iron, aluminum. These impurities would collect on or within the resin particle and reduce their capacity for removal of the ions. Hence waters may require coagulation and filtration prior to being fed into the deionizer.

The ion exchange resin particles can act as filters but their deionising ability and capacity will suffer and the resin bed may then require frequent cleaning or replacement.

CAPACITY BETWEEN REGENERATIONS

The capacity of the deionizer between regenerations depends on the type and quantity of ion exchange resins used in the columns, the quantity of acid and alkali used per regeneration of each respective column and the dissolved ionic content of the raw water. An economical quantity of regeneration chemical has been specified in the technical data sheet. The capacity between regenerations, if specified, has been based on the design raw water analysis. The concentrations of ions in the raw water is referred t as the ionic load.
The cation load is the sum of calcium, magnesium and sodium ionic contact.
The anionic load is the sum of chloride, sulphate, nitrate, silica and free carbon dioxide content of the water from the cation column.

The concentration of individual ions are normally measured in milligrams/liters as calcium carbonate as (mg/lit. as CaCO3 or parts per million as calcium carbonate as CaCO
3).

Apart from silica, the other ions present my be considered as existing in two form.

  • Alkaline Salts
  • Neutral Salts

The concentration of alkaline salts may be obtained by measuring the total alkalinity to methyl orange (M.Alk.)  The neutral salts content is conveniently obtained by measuring the equivalent mineral acidity (E.M.A.) this gives the sum of the anions chloride, nitrate, (phosphate if present).
When the concentration of ions are expressed on equivalents per liter or mg./lt. as CaCO3  the total cation content is numerically equal to the total anion content if silica and free carbon dioxide are ignored.

It follows that the sum of alkaline salts and neutral salts content gives either the cationic or anionic content.

  • Cationic Load = Total Alkalinity + Equivalent Mineral Acidity
  • Anionic Load  = M. Alk. + EMA + Silica + Free CO2

N.B: All concentrations must be measured mg/lit. or ppm CaCO3.

If a degasser is included in the system, the free carbon dioxide present in the water as well as that produced by the splitting up of the alkaline salts is almost all removed by it. The concentration of CO2 remaining after degassing is that which is soluble in water at the particular ambient temperature. For an approximation this may be taken as 6 ppm CaCO3.

Passage of water containing sodium chloride, magnesium sulphate and calcium carbonate through the cation exchange resin, results in the removal of the cations by the resin and in their place hydrogen ions are released into the solution.

NaCl

+

RH

RNa

+

HCl

1

Sodium Chloride

+

Hydrogen Resin

Sodium Resin


Hydrochloric Acid


Mg SO4

+

2RH

R2 Mg

+

H2SO4

2

Magnesium Sulphate


Hydrogen Resin

Magnesium Resin


Sulphuric Acid


Ca (HCO3)2


2RH

R2 Ca


2CO2 +2H2O

3

Calcium Bicarbonate


Hydrogen Resin

Calcium Resin


Carbon Dioxide + Water

It will be seen from the equations that the alkaline salt - calcium carbonate, has been split into carbonic acid which being weakly ionized can also be represented as free carbon dioxide and water.

The neutral salts have been converted into their respective mineral acids. The treated water is, therefore, acidic and has a low pH.

ANION EXCHANGE

There are several types of anion exchange resins which differ in basicity. Commonly used are the strong base (SB) anion exchange resins such as type-I or Type-II.

The strong base resins are completely ionized throughout the complete pH range and can remove all acids - strong acids such as hydrochloric and sulphuric acids and weak acids such as silica and carbonic acid.

Weak base resins are ionized only at a low pH and can, therefore, remove only the strong acid. Weak acids pass through the resin unaffected.

In demineralising, the anion exchange resin is used in the basic or hydroxide form. If the treated water from the cation exchange resin is passed through the anion exchange resin, the acids are removed.

HCl

+

ROH

RCl

+

H2O

4

Hydrochloric Acid


Hydrogen Resin

Chloride Resin


Water


H2 SO4

+

2ROH

R2 SO4

+

H2O

5

Sulphuric Acid


Hydroxide Resin

Sulphuric Resin


Water



The carbonic acid (free carbon dioxide and water) can also be removed in a similar manner but in some cases it is more economical to remove the carbon dioxide by passing the water downwards through a packed column of reaching rings though which air is blown upwards. This unit is called degasser (see separate introduction sheet if degasser included).

For weak base anion exchange resins, the reactions are similar but the process is more correctly represented as acid addition rather than ion exchange.

HCl

+

R

R HCl



6

Hydrochloric Acid


Basic

Resin

Hydrochloric Resin




Weak acids such as silica and carbon dioxide are not removed.

REGENERATION

When the supply of exchangeable ions within the resin is exhausted, the treated water from the resin deteriorates and the resin requires regeneration - re-conversion of the resin into the operating form.

For cation exchange resins a mineral acid such as hydrochloric acid or sulphuric acid is used.

For anion exchange resins, sodium hydroxide (caustic soda) can be used, for all types of resins but for weakly basic resins sodium carbonate (soda ash) can be used. The process is as follows

R Na

+

HCl

RH

+

NaCl

7

Sodium Resin


Hydrochloric Acid

Hydrogen Resin


Sodium Chloride


R2 Mg

+

H2 SO4

2 RH

+

Mg SO4

8

Magnesium Resin


Sulphuric Acid

Hydrogen Resin


Magnesium Sulphate


RCl

+

NaOH

ROH

+

NaCl

9

Chloride Resin


Sodium Hydroxide

Hydroxide Resin


Sodium Chloride


R HCl

+

NaOH

R NaCl

+

H2 O


Hydroxide Resin


Sodium Hydroxide

Basic Resin

Sodium Chloride

Water Resin



Therefore, if a degasser is included

Anionic Load = EMA + Silica + 6ppm CaCO3

The capacity of the deionizer is based on the individual ionic load for both the cation and anion exchange resin columns. If there is an increase in either of the ionic loads there will be a corresponding decrease in the capacity between regeneration.

TREATED WATER QUALITY

The purity of demineralised water is most conveniently assessed by measurement of its electrical conductivity. The electrical conductivity which is conventionally expressed in microsiemens/cm (or micromhos/cm) is influenced by ionisable substances such as sodium chloride, sodium hydroxide, and carbonic acid but not by silica.

UNITS USING STRONG BASE ANION RESINS

Deionizers which use strong base anion exchange resins produce a treated water virtually free from carbon-dioxide, silica and other dissolved solids. At this stage the pH will be around 8.5 to 9.5 and the electrical conductivity between 5-20 micron s/cm. This quality will be maintained until the point which carbon dioxide and silica (both weak acids) are no longer removed. There will then be a sharp drop in pH to a new level around pH 5 and a rise in conductivity of about 10-20 micro s/cm. At this point the treated water will still be free of sulphates and chlorides but will contain carbon-dioxide and silica. If their presence is objectionable, the unit must be regenerated but if not the unit may be further run until the conductivity further rises and chloride break-through occurs.

Although the treated water is very low in dissolved solids has a low conductivity and is substantially more pure than distilled water, the pH is likely to be higher than 7.0. The actual quality is greatly dependent on the raw water quality particularly its sodium ion content.

Sodium being monovalent is less efficiently removed by the cation exchange resin. There is therefore a very slight leakage of sodium ions into the treated water from the cation exchange resin. This treated water will therefore contain mineral acidity and a trace of neutral salts such as sodium chloride.

This trace of sodium chloride is converted into sodium hydroxide on passage of the treated water through the anion exchange resin.

NaCl

+

ROH

RCl

+

NaOH

Sodium


Hydroxide

Chloride


Sodium

Chloride


Resin

Resin


Hydroxide

The presence of sodium hydroxide has a very marked effort on both the pH and conductivity of treated water.

  • 1 ppm of NaOH results in a conductivity of 6 micro s/cm. 0.4 ppm of NaOH results in a pH of 9.0.
  • The actual leakage of sodium is dependent on the sodium content of the raw water and is not uniform throughout a run. It begins high gradually reduces to a minimum then increases steadily.
  • The pattern of conductivity and pH of the treated water is also similar.
  • The chemical control section should be referred to for further details.

UNIT USING WEAKLY BASIC RESINS

The use of a weakly basic resin presupposes that the presence of carbon dioxide and silica is not objectionable. The treated water pH will normally be around 5-6 due to the pressure of CO2 and the conductivity will below 35 micro siemens/cm. Leakage of sodium ions will not affect the conductivity or pH markedly as the neutral slat sodium chloride will pass through the anion exchange resin unchanged. 1 ppm NaCl results in a conductivity of 1.8 micron s/cm.

NOTE

IODION-850 or eq. are medium base anion exchange resin. Because it contains both strong and weak base groups the treated water quality will initially be as described for units using strong base resins - that is pH 8.5 to 9.5, conductivity 5 - 20 micron s/cm. And after about 10-20% of the service output it will be as described for a weak base resin.

MIXED BED UNIT

Mixed bed demineraliser plant embodies a single column of strong acid cation exchange resin and strong base anion exchange resin, material mixed intimately together. Water passing through the column comes repeatedly in contact with these resins and is thus in effect subjected to an almost infinite number of demineralising stages. Demineralised water of extreme purity is produced - purity that cannot be equaled by any other commercial method. Mixed bed demineralisers are regenerated with acid and alkali but the ion exchange resin must be separated before this can be done. Bed separation is accomplished by back-washing-this carries the lighter anion resin sinks to the bottom. Two completely separated and super imposed layers are thus formed.

Technical Specifications

Model

DIA MM

H.O.S. MM

Thickness

Frontal
Piping
( mm)

Max. Flow Rate m3/hr.

Resin Qty. C A

HCl (100%) Kgs.

NaoH (100%) Kgs.

AMT (mm)

CDT (mm)

Remarks

Shell

Dish End

ENVIROX
CAU-200

200

900

5

5

25

1.0

28

28

3.0

3.0

300 x 700

300 x 700

M.S.R.L.

ENVIROX
CAU-250

250

900

5

5

25

2.0

40

40

4.5

4.5

300 x 900

300 x 900

M.S.R.L.

ENVIROX
CAU-300

300

1500

5

5

32

3.0

102

102

12.0

12.0

400 x 900

400 x 900

M.S.R.L.

ENVIROX
CAU-400

400

1500

5

5

32

4.5

160

160

18.0

18.0

500 x 900

500 x 900

M.S.R.L.

ENVIROX
CAU-500

500

1500

5

6

40

7.5

280

280

32.0

32.0

700 x 900

700 x 900

M.S.R.L.

ENVIROX
CAU-600

600

1500

5

6

50

11.0

410

410

48.0

48.0

800 x 900

800 x 900

M.S.R.L.

ENVIROX
CAU-800

800

1500

5

6

65

20.0

720

720

85.0

85.0

900 x 900

900 x 900

M.S.R.L.

ENVIROX
CAU-900

900

1500

5

6

80

25.0

920

920

110.0

110.0

1200 x900

1200 x 900

M.S.R.L.
